INDUSTRY HIGH QUALITY STANDARDS AT A VERY COMPETETIVE PRICE WITH TRUE OEM FEEL
.png)
CONTROLLER FEATURE SET
-Casing- Full CNC heatsink with injection moulded plastic rear (fully potted).
-Peak Output Power 80KW.
- 48 x High Quality 160V MOSFETS
- Supports up to 32S
-Max DC Current 600A.
-Max Phase Current 1000A.
-Simple Fitting using adapted harness.
-Regen Braking with thumb trigger throttle.
-Full colour display with multiple functions.
- Ip 67 Waterproofing.
-Full android and IOS app with Telemetry reporting.
-Three fully customizable speed / power modes.
-Community hub with telemetry reporting for top speed and 0-60 race modes. Including community and bike leader boards and profiles.
-BMS boost function for unlocking more power without modifying hardware or bypassing your battery.
32S CAPABLE
up to
AXON SHOCK CONTROLLER SPECS
Image taken from AXON phone app.
SHIPPING FROM JAPAN
RELEASE DATE ETA SEPT/OCT 2025
Controller is currently being tested and we are looking to do a full release in the coming months.
FOR THE LIST OF FEATURES PLEASE SEE BELOW
+
+
+
+
FUNCTION SWITCHES
(NOT INCLUDED IN ULTRA BEE VERSION)
REGEN THUMB
THROTTLE
AXON COLOUR DISPLAY
SUR-RON / TALARIA DISPLAY MOUNT
ULTRA BEE DISPLAY
MOUNT (ULTRA BEE VERSION)

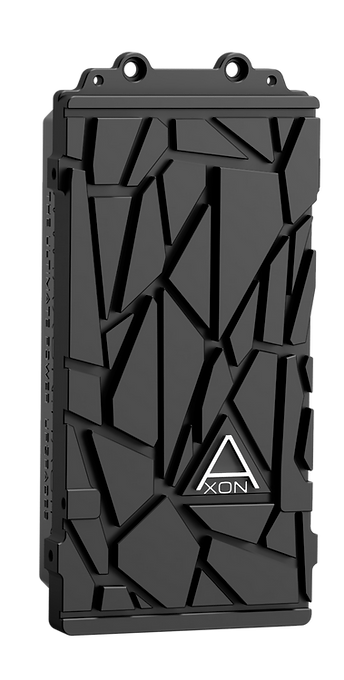

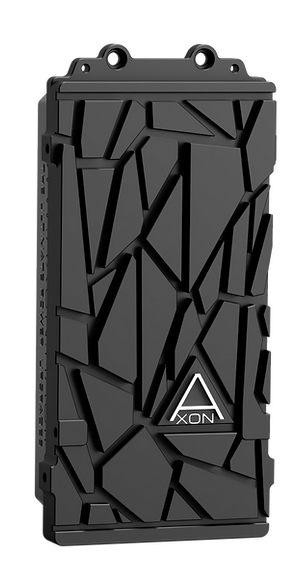

AXON SHOCK CONTROLLER
COMPLETE PACKAGE INCLUDING ALL THE ABOVE ACCESORIES & CABLES
THE NUMBERS THAT MATTER - WHERE THE POWER COMES FROM
32s
up to 32s
up to 32s (134.4V)
48
160V high quality mosfets
fitted with
600A
DC
up to
1000
up to
DC
80KW
up to
POWER OUTPUT
UNLEASH BIG POWER WITH THE AXON SHOCK
BACKGROUND
The Axon Shock controller was developed to be our premium controller offering. Not only offering high voltage but unmatched power to boot. We have developed this controller to offer the best integrated solution for high voltage on the market. For many months during development we were keeping a careful eye on the community and what people wanted. With the Axon Shock you have it all.
More power than any of the main brands, more high quality MOSFETS and all of the features of our Axon Phase controller. This controller is the only high voltage controller you will need. We have worked on this controller for a significant amount of time and very soon we will be ready to share more information and videos.
Axon is committed to giving the community what it wants and the Axon Shock controller is the pinnacle of performance in the Sur-Ron and Talaria style bike space.
AXON SHOCK - COLOUR BIKE DISPLAY
WATERPROOF - EASY TO USE WITH ALL THE INFORMATION YOU REQUIRE
WE PROVIDE A FULL COLOUR DISPLAY WITH EACH CONTROLLER WHICH DISPLAYS THE FOLLOWING INFORMATION
1) CONT TEMP
Controller
temperature
indicator.
2) BATTERY INFO
Battery voltage and state of charge information.
3) MOTOR TEMP
Motor temperature indicator.
4) GEAR ICONS
Indication of what drive mode your bike is in- Drive, Park or
Reverse.
8) SPEEDOMETER
Switch between bike speed in KM/H and MPH with accurate reporting.
6) SWITCH INFO
Switch between seeing information on RPM, Amp draw and power using the fucntion switch.
5) Function
Press to switch between live telemetry data on the display.
7) MODE & ODO
Selected power mode and odometer / trip information.
9) Info Icons
Power and error information light up panel.
10) Navigation
Cycle between menus and confirm choices using these buttons.
SUPPLIED WITH MOUNTING BRACKET FOR SUR-RON LBX / SUR-RON ULTRA BEE / TALARIA
FULLY ADJUSTABLE THROTTLE AND - REGEN THUMB THROTTLE
The Axon Shock controller offers a fully adjustable main throttle & regen braking throttle which can be customized via the Axon App. Adjust the main throttle launch / acceleration curve and the regen braking curve on the fly and easily with our intuitive control system. You can also adjust the max brake torque to your own preference.
AXON Shoke - FUNCTION SWITCHES
The Axon Shock controller is also supplied with a set of function switches that allow the following actions;
1) Switch between one of the three power profiles.
2) Activate hill hold mode.
3) Turn regen braking on and off
4) Activate reverse mode.
5) Activate crawl mode
6) Activate Angle control (gyro)
AXON SHOCK - POWER WHEN YOU NEED IT MOST
AXON - ANDROID & IOS APPLICATION
Highly adjustable settings for power / throttle curve, motor torque and regen braking. Multiple power mode options, error reporting and diagnostics
Switch between three different fully adjustable power modes on the fly, using the supplied switches on your handlebars.
Intuitive main dashboard offering all of the important metrics such as; temperatures, state of charge, speed and trip information, as well as adjustable telemetry data from the controller.
Our quick set up will have you up and running in 5 minutes with a simple, easy to follow process. Choose your battery & motor and we update and prepare your controller to be used.
For a full list of functions and options on the Axon app please see the App guide page on this website.
The AXON app has many features, offering a simple and easy to use interface. Check out the video to the left which shows the set and menu system, or navigate to the Axon APP link in the site menu for a more detailed look at the options.
GET MORE POWER FROM YOUR STOCK BATTERY
BOOST MODE
Unlock your batteries potential with our customizable boost feature. Simply fill in your battery information on our app and the controller will manage your discharge. This allows you to get everything you can extract out of the battery, without hitting the BMS cut off . This is fully adjustable according to your batteries specifications and perfect for when you need a short extra burst of power. This feature can also easily be disabled for less experienced users.
INTRODUCING COMPETITIVE MODES FOR AXON RACING
AXON PHASE 1000 - CONTROLLER DIAGNOSTICS & TROUBLE SHOOTING
RACE MODE
Introducing the Axon Race mode for both our app and via the web. When used in conjunction with our App you can take your riding to the next level with 0-60 drag and top speed race modes. Featuring leader boards, user profiles and full telemetry data visible to all users. Data shown includes bike information, speed over time, torque requested and delivered, Power in KW vs RPM, DC /Phase, Voltage Drop, Voltage vs DC current, Temperatures, G-Force and Race pathing with mapping.
Data Samples from a top speed run
SELF DIAGNOSIS AND HELP MODES
CONTROLLER ERROR DIAGNOSTICS VIA THE AXON APP
Every controller will also report the last two errors in the diagnostic menu, so technical support can better understand the issues you are having.
Each controller will have a unique serial number allowing us to easily find you and provide assistance if required.
In the event of an error a full set of diagnostics will also be sent directly to Axon technical support, so they will be able to help if required.
Here you will be informed of the origin of the error, along with possible causes and a checklist for you that may fix the issue.
If an error occurs you will be alerted on the app at the top of the dashboard screen. If you click on the arrow you will be taken to the controller diagnostics menu.
Axon has designed our APP with a simple diagnostic system that allows users to gain information on errors, with possible causes and solutions to the problem.
If you require further technical assistance with your controller you can contact us directly using info@axon.racing or you can use the help button on the app.
AXON SHOCK - FULL TORQUE MAPPING OF SUPPORTED MOTORS
Striving to use the most advanced motor control methods, we have developed TorqueMAP FOC, which relies on a unique mapping table tailored to each motor supported by the Phase controller. This allows the controller to deliver precise torque output, for a smooth and powerful throttle response.
FULL TESTING FOR EACH MOTOR SUPPORTED
To achieve this, Axon has completed a rigorous two-week motor mapping process for each supported motor — collecting and integrating detailed performance data. This ensures we can accurately characterize each motor’s profile and unlock its full performance potential.
BIKES AND MOTORS THAT WE SUPPORT
AXON MOTORS
PULSAR RANGE
FOR ULTRA BEE
& LIGHT BEE
STOCK MOTORS
LIGHT BEE
ALL VERSIONS
FOR ULTRA BEE
ALL VERSIONS
TALARIA STING
ALL VERSIONS
KO MOTORS
BIG BLOCK
RS MOTOR
F-SPEC
SOTION
LIGHT BEE FW01
EBMX
COMING SOON
