500A / 1000 PHASE AMP - CONTROLLER
Image taken from AXON phone app.
INDUSTRY HIGH QUALITY STANDARDS AT A VERY COMPETETIVE PRICE WITH TRUE OEM FEEL
-Casing- Full CNC heatsink with injection moulded plastic rear (fully potted)
-Peak Output Power 46KW
-Ingress Protection: IP67
-Max DC Current 500A
-Max Phase Current 1000A
-Regen Braking with thumb trigger throttle
-Colour display with multiple functions and ride
information
- Built in Gyro control with Angle modes
- TorqueMAP FOC
-Full android and IOS app
-Three fully customizable speed / power modes
-Top Speed and 0-60 modes with full telemetry data competitive fun
GET MORE PERFORMANCE FROM YOUR STOCK BATTERY
Get more performance from your stock battery with Axon boost mode. Below are CONSERVATIVE estimates of the performance boost you will receive using a stock battery and our Phase controller.
Each user can tweak and test the boost values to get the maximum performance out of their battery. Please note this is not a magic button and it is based 100% on your battery and the BMS logic conditions. We have designed this so users can get the absolute maximum out of a BMS before shut off.
It cannot give you more power than the BMS threshold that is set by your battery manufacturer. However, from our testing and test rider feedback we have been very pleased with the gains achievable. Please see the BMS Boost page under the app heading for more information on how boost works.
PERFORMANCE BOOST AT BUDGET PRICING - WHY PAY MORE?

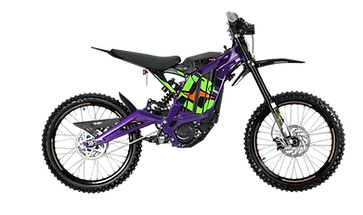

SUR-RON LIGHT BEE
OLD 6KW MODELS
STOCK DC AMPS
90A
WITH AXON BOOST
120-140A
2025 8KW MODELS
STOCK DC AMPS
130A
WITH AXON BOOST
160-180A

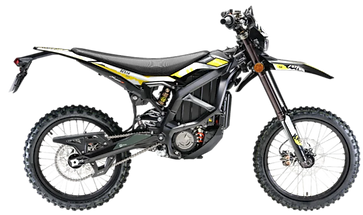

SUR-RON ULTRA BEE
PRE 2025 MODELS
STOCK DC AMPS
170A
WITH AXON BOOST
200-220A
TALARIA STING
MX3
STOCK DC AMPS
100A
WITH AXON BOOST
120-140A
MX4
STOCK DC AMPS
130A
WITH AXON BOOST
150-170A
FOR BIKE VARIANT PRICING PLEASE SEE BELOW
$799 USD
Available from Japan / China
exc shipping & taxes
Available from USA direct
$899 USD
$799 USD
Available from Japan / China
exc shipping & taxes
Available from USA direct
$899 USD
$799 USD
Available from Japan / China
exc shipping & taxes
Available from USA direct
$899 USD
WHAT YOU GET WHEN YOU BUY THE AXON PHASE CONTROLLER
+
+
+
+
AXON PHASE CONTROLLER
FUNCTION SWITCHES
(NOT INCLUDED IN ULTRA BEE VERSION)
REGEN THUMB
THROTTLE
AXON COLOUR DISPLAY
COMPLETE PACKAGE INCLUDING ALL THE ABOVE ACCESORIES & CABLES
SUR-RON / TALARIA DISPLAY MOUNT
ULTRA BEE DISPLAY
MOUNT (ULTRA BEE VERSION)
KEY PERFORMANCE SPECS FOR THE AXON PHASE CONTROLLER
22s
up to
up to (92.4V)
500A
DC
up to
30
100V Infineon mosfets
fitted with
1000
up to
phase amps
46KW
up to
POWER OUTPUT
HOW DO WE COMPARE PRICE WISE?
(Pricing correct as of June 2025)
BRAND
PRICE PER KW (Peak)
DC AMPS
PHASE AMPS
DISPLAY
APP
Axon
PHASE
EBMX
x9000
$18
CNC heatsink with injection moulded rear
$24-27
CNC heatsink with detachable plate and moulded plastic rear
500
500
1000
1000
Full colour with regen throttle & function switches
Small colour with regen throttle & function switches. Large Colour display $190 extra.
Android & IOS support
Android & IOS support
Torp
TC500
$36
Full plastic with controller cover
350
500
Display available at extra cost circa $200
Android & IOS support
VTB
$26
CNC heatsink with moulded plastic rear
500
1000
Full colour with regen throttle & function switches
Android & IOS support
Torp
TC1000
$23
Plastic with CNC cover available at $250
700
1000
Display available at extra cost circa $200
Android & IOS support
BACKGROUND
The Axon Phase controller has been designed from the ground up to provide a high quality aggressively priced entry into the e-bike modification arena. Not only is it stacked with features, when bundled with its accessories it is a cheaper offering than many of its competitors.
The team developing the controller has decades of experience working in this sector and also the dirt bike industry. The work completed on the Phase controller represents the best part of 18 months of design, testing and development. We have used the current market offering as a bench mark for our controller and we believe it is not only the cheapest for its feature set, but also one of the best performing out there.
The controller itself was designed by our teams in Japan & China. The Axon team owns infrastructure in both Japan and China and going forward will continue to design and develop products for the electric vehicle / bike market. The Phase controller represents the first Axon branded controller in what we plan to be a line of several offerings.
AXON PHASE CONTROLLE UNBOXING VIDEO
AXON PHASE - CONTROLLER EXTERNAL & INTERNAL DESIGN

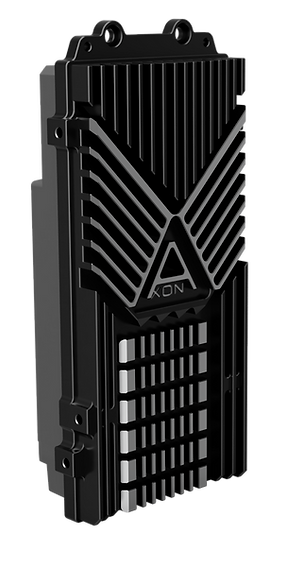

EXTERNAL CASING DESIGN
Full CNC 6061 T6 casing designed and machined by us to optimise heat dissipation and cooling. 6061 Aluminium is perfect for this application as it is strong, very resistant to corrosion and gives a better and more unformal anodized finish.
WHY USE 6061 ALUMINIUM?
6061 Aluminium is perfect for this application as it is strong, better thermal conductivity, very resistant to corrosion, easier to machine and gives a better and more unformal anodized finish.
The final heatsink is machined then anodized in black. It is then taken back onto the CNC machines for additional work to expose the design work. Once this is completed it is then re-treated to prevent discolouration.
Machined into the heatsink are mounting positions for both Talaria sting and Sur-Ron Light Bee bikes. For Sur-Ron Ultra Bee an additional aluminium bracket is provided.
IP67 waterproofing, fully potted controller with silicone sealed connectors.
Injection moulded plastic rear housing with clearly labelled connectors.
INTERNAL PCB DESIGN
Custom designed logic board and power stage from scratch by our engineers. To improve performance, power delivery and reliability.
Designed for reliability and power the Axon Phase is powered by German-engineered Infineon MOSFETs—these components are renowned worldwide for their rock-solid durability and lightning-fast switching speeds.
By integrating these premium MOSFETs, the Axon Phase achieves cooler operation, superior energy efficiency, and enduring performance under heavy load.
This results in a more responsive control experience, extended product lifespan, and the confidence that your equipment will perform at its peak—even in the harshest of conditions.
The pcb has also been designed to include high quality well spread capacitors improving filtering and power delivery across the board giving smooth, stable and reliable performance.
using high quality mosfets by

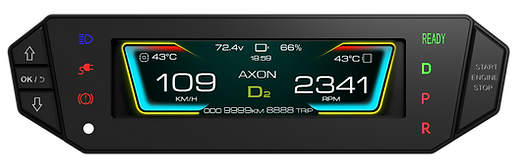

AXON PHASE - COLOUR BIKE DISPLAY
WATERPROOF - EASY TO USE WITH ALL THE INFORMATION YOU REQUIRE
WE PROVIDE A FULL COLOUR DISPLAY WITH EACH CONTROLLER WHICH DISPLAYS THE FOLLOWING INFORMATION
1) CONT TEMP
Controller
temperature
indicator.
2) BATTERY INFO
Battery voltage and state of charge information.
3) MOTOR TEMP
Motor temperature indicator.
4) GEAR ICONS
Indication of what drive mode your bike is in- Drive, Park or
Reverse.
8) SPEEDOMETER
Switch between bike speed in KM/H and MPH with accurate reporting.
7) MODE & ODO
Selected power mode and odometer / trip information.
6) SWITCH INFO
Switch between seeing information on RPM, Amp draw and power using the fucntion switch.
5) Function
Press to switch between live telemetry data on the display.
9) Info Icons
Power and error information light up panel.
10) Navigation
Cycle between menus and confirm choices using these buttons.
SUPPLIED WITH MOUNTING BRACKET FOR SUR-RON LBX / SUR-RON ULTRA BEE / TALARIA
FULLY ADJUSTABLE THROTTLE AND - REGEN THUMB THROTTLE
The Axon Phase controller offer a fully adjustable main throttle & regen braking throttle which can be customized via the Axon App. Adjust the main throttle launch / acceleration curve and the regen braking curve on the fly and easily with our intuitive control system.
You can also adjust the max brake torque to your own preference.
AXON PHASE - FUNCTION SWITCHES
The Axon Phase controller is also supplied with a set of function switches that allow the following actions:
1) Switch between one of the three power profiles.
2) Activate hill hold mode.
3) Turn regen braking on and off
4) Activate reverse mode.
5) Activate crawl mode
6) Activate Angle control (gyro)
Right hand Kill switch - toggles drive and neutral (you can leave it on drive)
Right hand speed button (3 modes) will change the speed
Press up for D3
Press centre for D2
Press down for D1
ASR button
Short press toggle hill hold
Long press 5 seconds toggle walk mode
Long press 8 seconds toggle Angle mode (Gyro)
F.R/S - Hold for reverse mode.
FUNCTION SWITCHES SUR-RON LIGHT BEE & TALARIA STING
FUNCTION SWITCHES SUR-RON ULTRA BEE (STOCK SWITCHES)
AXON PHASE - ANDROID & IOS APPLICATION
Highly adjustable settings for power / throttle curve, motor torque and regen braking. Multiple power mode options, error reporting and diagnostics
Switch between three different fully adjustable power modes on the fly using the supplied switches on your handlebars.
Intuitive main dashboard offering all of the important metrics such as temperatures, state of charge, speed and trip information as well as adjustable telemetry data from the controller.
Our quick set up will have you up and running in 5 minutes with a simple, easy to follow process. Choose your battery & motor and we update and prepare your controller to be used.
For a full list of functions and options on the Axon app please see the App guide page on this website.
The AXON app has many features, offering a simple and easy to use interface. Check out the video to the left which shows the set and menu system, or navigate to the Axon APP link in the site menu for a more detailed look at the options.
GYRO SUPPORT WITH WHEELIE AND SAFETY MODES (BETA).
The Axon Phase controller comes ready with the hardware required to support IMU functions. Using a gyro on these types of bikes can have numerous benefits from safety to gaining more control while racing and performing stunts. Check out the modes that we are currently working on and we will be releasing very soon with an app update.
GYRO FUNCTIONALITY (PUBLIC BETA)
SIMPLE EASY & EASY TO UNDERSTAND
While the control system for the gyro is fairly complicated we have simplified its use in the app so it is easy and straight forward to use. The icons will help explain the bike angles and settings are changed via a simple slider which is easy enough for anyone to understand and use seamlessly.
LAUNCH MODE
5° - 15°
When activated Launch mode will prevent your bike wheel from lifting past the designated angle . You can set the maximum angle for this using the slider. This is a perfect feature for drag racing or situations where you need to pull hard without the worry of the wheel lifting too much and losing control.
To use simply set the max angle you want the bike to reach before the controller limits further movement.
ANTI ROLL MODE
15° - 60°
When activated Anti Roll mode will prevent your bike your bike from tipping over. You can set the maximum angle for this so you are comfortable riding. This is a perfect feature for beginners or people just getting used to throttle control and works well as a safety feature.
To use simply set the max angle you want the bike to reach before the controller limits further moevement.
STUNT MODE
30° - 100°
When activated, Stunt Mode will actively assist in keeping the front wheel up while preventing you from tipping over. You can set the maximum and minimum angles based on the bike’s tipping point and your personal preference.
GET MORE POWER FROM YOUR STOCK BATTERY
BOOST MODE
Unlock your batteries potential with our customizable boost feature. Simply fill in your battery information on our app and the controller will manage your discharge allowing you to get everything you can extract out of the battery without hitting the BMS cut off . This is fully adjustable according to your batteries specifications and perfect for when you need a short extra burst of power. This feature can also easily be disabled for less experienced users.
INTRODUCING COMPETITIVE MODES FOR AXON RACING
AXON PHASE 1000 - CONTROLLER DIAGNOSTICS & TROUBLE SHOOTING
RACE MODE
Introducing the Axon Race mode for both our app and via the web. When used in conjunction with our App you can take your riding to the next level with 0-60 drag and top speed race modes. Featuring leader boards, user profiles and full telemetry data visible to all users. Data show includes bike information, speed over time, torque requested and delivered, Power in KW vs RPM, DC /Phase, Voltage Drop, Voltage vs DC current, Temperatures, G-Force and Race pathing with mapping.

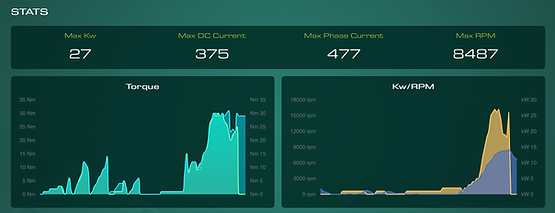

Data Samples from a top speed run
SELF DIAGNOSIS AND HELP MODES
CONTROLLER ERROR DIAGNOSTICS VIA THE AXON APP
Every controller will also report the last two errors in the diagnostic menu so technical support can better understand the issues you are having.
Each controller will have a unique serial number allowing us to easily find you and provide assistance if you have.
In the event of an error a full set of diagnostics will also be sent directly to Axon technical support so they will be able to help if required.
Here you will be informed of the origin of the error along with possible causes and a checklist for you that may fix the issue.
If an error occurs you will be alerted on the app at the top of the dashboard screen. If you click on the arrow you will be taken to the controller diagnostics menu.
Axon has designed our APP with a simple diagnostic system that allows users to gain information on errors with possible causes and solutions to the problem.
If you require further technical assistance with your controller you can contact us directly using info@axon.racing or you can use the help button on the app.
AXON PHASE - FULL TORQUE MAPPING OF SUPPORTED MOTORS
Striving to use the most advanced motor control methods, we've developed TorqueMAP FOC, which relies on a unique mapping table tailored to each motor supported by the Phase controller. This allows the controller to deliver precise torque output for a smooth and powerful throttle response.
FULL TESTING FOR EACH MOTOR SUPPORTED
To achieve this, Axon has completed a rigorous two-week motor mapping process for each supported motor — collecting and integrating detailed performance data. This ensures we can accurately characterize each motor’s profile and unlock its full performance potential.
BIKES AND MOTORS THAT WE SUPPORT
AXON MOTORS
PULSAR RANGE
FOR ULTRA BEE
& LIGHT BEE
STOCK MOTORS
LIGHT BEE
ALL VERSIONS
FOR ULTRA BEE
ALL VERSIONS
TALARIA STING
ALL VERSIONS
KO MOTORS
BIG BLOCK
RS MOTOR
F-SPEC
SOTION
LIGHT BEE FW01
EBMX
COMING SOON
