INDUSTRY HIGH QUALITY STANDARDS AT A VERY COMPETETIVE PRICE WITH TRUE OEM FEEL
RACING
Talaria
QUANTUM 72V 45AH FOR TALARIA
TRADE ENQUIRIES OPEN
350A
CONTINUOUS
CUSTOM CONNECTOR
PEAK POWER UP TO
32KW
CONTINUOUS POWER
TESTED FOR 5 MINUTES AT 300A
22KW+
SHIPPING FROM CHINA

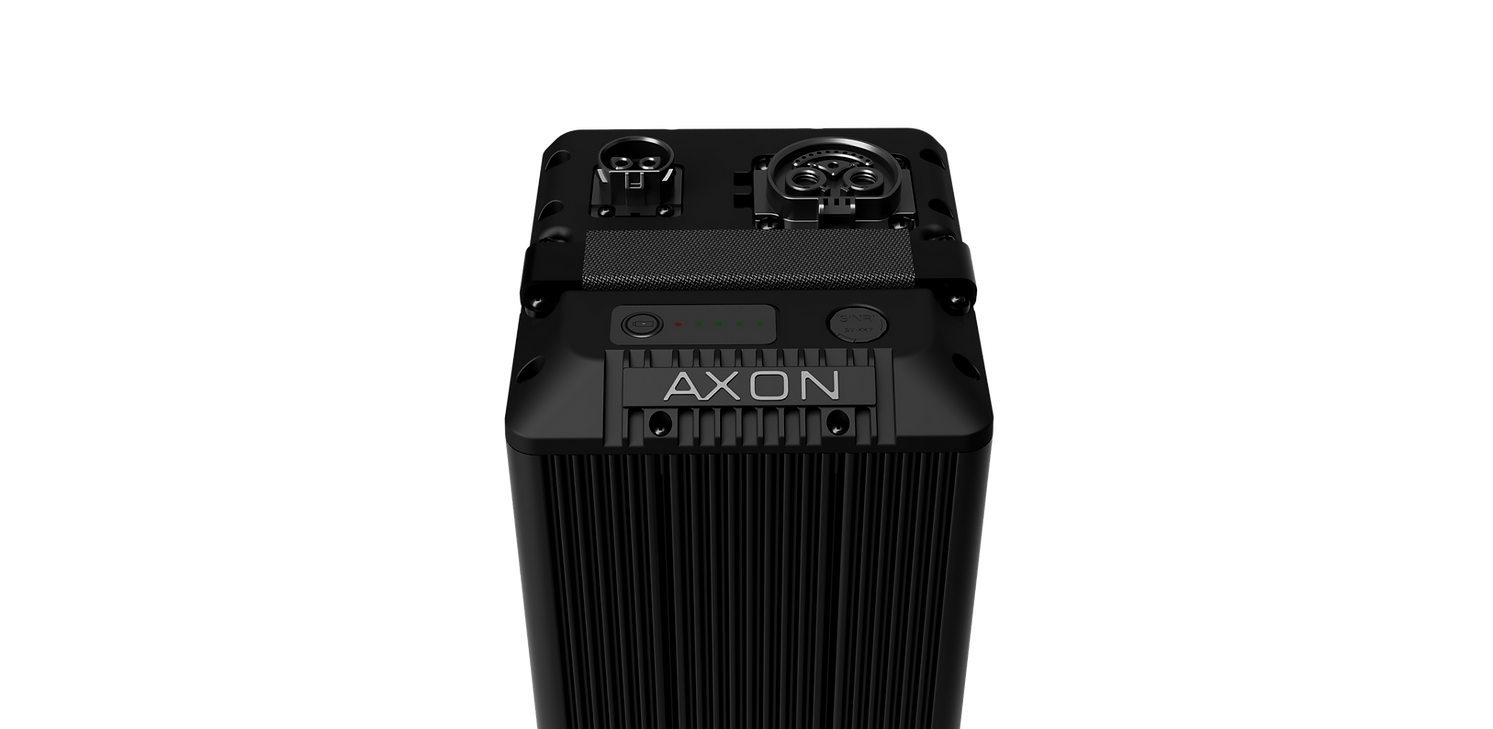

AXON 72V 45Ah TALARIA BATTERY
The Axon Quantum battery range is designed to be a high quality, high performing battery that is targeted at a very competitive price for the upgrade market. Not only does it have full steel and aluminium external casing. It also has custom moulded internals and cell mounting design. There has been no expense spared to engineer the highest quality battery possible. A custom BMS developed with our partners using high quality components, along with a custom 350A continuous connector (supplied with every battery along with corresponding bike power cables). Offering a true OEM feel with excellent performance the Axon Quantum is a serious upgrade battery for any Talaria enthusiast.
FOR MORE INFORMATION ON ANY PRODUCTS PLEASE CONTACT INFO@AXON.RACING
AXON 72V 45Ah QUANTUM BATTERY INTRODUCTION VIDEO
TRADE ENQUIRIES OPEN
BATTERY FEATURES
Charge port with rubber bung protector. Charge port can support up to 30A fast charging.
Custom made 350A connector to allow ultimate power delivery & performance. Including CANbus connectivity.
350A
Strong & easily replaceable battery lifting strap. secured by 4 screws with spares straps available from us.
Full steel casing which is strong and highly durable.
Full CNC aluminium lid giving the highest quality battery finish on the market with IX7 water seal between the lid and case.
Battery life indicator. Press button to see how much charge remains.
Highly secure battery lid which is over engineered for extra strength to prevent issues with continual fitting and removing of the battery.
Full Bluetooth connectivity and supporting AXON app for IOS & Android.
SAMSUNG 50S - CELLS
VOLTAGE 72V CAPACITY 45AH
400A BURST 10 SECONDS
300A CONTINOUS (TESTED 5 MINUTES)
32KW PEAK POWER
Height
390mm
PERFORMANCE SPECS
Width
128mm
Axon Charger Available
High quality external casing design with carry handle.
US / EU / UK VERSION
Rated AC Input Voltage Range
110VAC - 240VAC; 50/60Hz
AC Input maximum current
5A @220VAC
AC Output maximum current
12A
Charger Certification
UL / CB / CE / FCC / KC / KCC / RCM / CEC / DOE / CP65 / ECER10
RACING
IP67 RATED
Can be fully submerged to a depth of 1m for up to 30 minutes. Lab tested and confirmed waterproofing for your peace of mind.
One of the only if not the only upgrade battery for Sur-Ron and Talaria with a legitimate ip67 rating.
All Axon Racing batteries are
WHY BUY OUR BATTERIES OVER OTHER BRANDS?
Each battery design goes through extensive testing to ensure that the performance and safety features are of the highest quality and standards.
CERTIFICATIONS
C.E. - UN38.3 - MSDS
Fully designed in CAD prior to manufacture to maximise capacity and structural integrity.
Fully injection moulded cell spacers. Each cell is held in place with no
rubbing, movement or wear. Unlike many other brands that secure the cells with tape or 3d printed parts. The highest manufacturing quality on the market bar none.
THE HIGHEST BUILD QUALITY IN THE MARKET - PROFESSIONAL, CERTIFIED, TRUE OEM FEEL
Our batteries are designed by engineers with decades of experience of battery manufacture. Each of our batteries are built for performance and reliability to the highest quality standards. These are not hobby grade batteries like many of the third party offerings on the market. These are professionally designed, certified batteries that offer the highest manufacturing quality on the market, with multiple design patents for the internals design.
We use Samsung 50S cells as from our testing these have proven to be reliable and offer great performance at a reasonable price.
CUSTOM BMS SOLUTION
The Axon battery is fitted with a fully custom BMS design. This allows the battery to allow to its performance capacity.
Our battery will discharge 300A for 5 minutes and 400A peak for 10 seconds.
The BMS is also fitted with a Bluetooth module. This means that the Axon app can also be used to check on battery health and information.
Using the BMS you can track metrics such as remaining capacity, voltage, cell health, state of charge and charging progress.
You can also observe a number of performance metrics while the battery is being used and the app is left open.
AXON QUANTUM 45 - TALARIA BATTERY - PERFORMANCE DATA
BATTERY CONTINUOUS DISCHARGE TEST @ 300A UNTIL BMS SHUTDOWN
FULL BATTERY SPECIFICATION
DURATION
300A +
CONTINUOUS DISCHARGE
5 MINUTES
DURATION
400A
BMS CUT OFF LEVEL ONE
10 SECONDS
TRADE ENQUIRIES OPEN
BATTERY FEATURE SET
-72v 45Ah capacity.
-Samsung 50S cells
-High quality OEM style casing with full aluminium case with CNC aluminium lid
- Unmatched internal design with high quality injection moulded cell spacers and casing with multiple patents.
-Custom made BMS with multiple safety features capable of 300A continuous discharge.
-Custom made bespoke 350A connector allowing ultimate power delivery along with CANbus communication capability.
-Max burst 400A+ 10 seconds
-300A for 5 minutes
-4AWG wires for high continuous current.
-Full android and IOS app compatibility
-Comes with high quality bike power harness and connector and charger.
FULL BATTERY SPECIFICATION
